Platinum Ergo Straight

Learn more about the Ergo Straight in detail

• Slim Rail – The Platinum Ergo Straight features a discreet, floor-mounted aluminium rail with a clean, modern appearance. The rail is fixed directly to the staircase rather than the wall, allowing for quick installation with minimal disruption to your home.
• Seatbelt – An easy-to-use retractable seatbelt keeps you secure throughout your journey. The interlocked safety system ensures the stairlift will only operate when the seatbelt is correctly fastened, giving added peace of mind.
• Controls – Simple and intuitive armrest controls allow smooth travel up and down the staircase. The Ergo Straight can be operated using a rocker switch as standard, with a joystick option available if preferred.

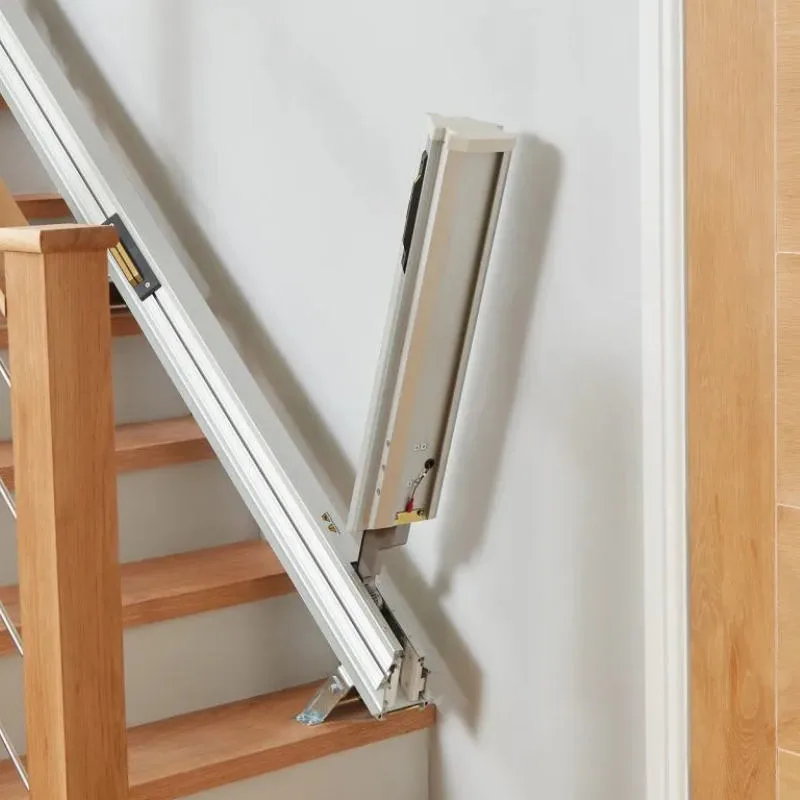

• Folding rail – If you have an obstruction at the foot of the staircase, you can choose to have an automatically powered hinge installed. Once you have used your stairlift the lower section of the rail will fold away, leaving the bottom of your staircase clear.
• Call device – Remote call and send controls allow you to move the stairlift to either end of the staircase when it is not in use, making it ideal for shared households

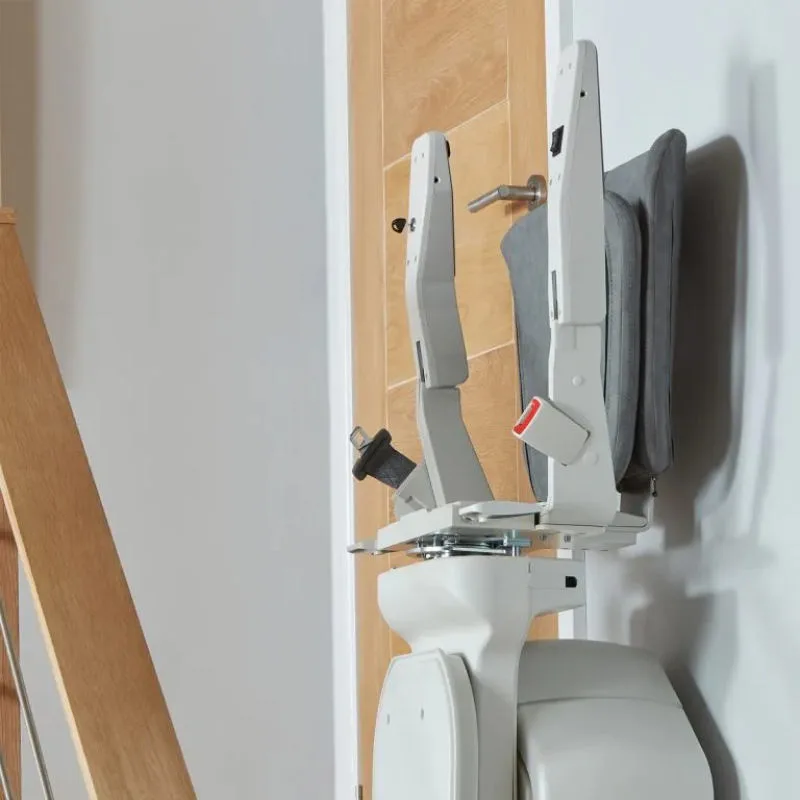

• Discreet design – Designed with everyday living in mind, the Ergo Straight features foldaway armrests, seat and footplate to minimise its footprint, helping to keep your staircase accessible for other users.
• LCD screen – Text display for real time information, easily visible on the armrest.
• Adjustability  – The armrests, backrest and chair pad of the Ergo Straight can be adjusted to accommodate the user.
• Chair pad option – The optional Ergo Plus chair pad, with its contoured front, is ideal for those with shorter legs or those who have difficulty bending their knees.
• Design – The Ergo Straight is available in 4 colour options to perfectly suit your home.

• Speed – 0.12 m/s
• Drive Type – Rack and pinion
• Weight Capacity –  160 kg
• Automatic Stop – Yes
• Staircase Incline – Up to 62°
• Operation – Arm mounted rocker / joystick or Infrared or Radio Frequency
  remote call and send controls.
• Batteries – Yes
• Certification – BS EN 81-40:2020, Machinery Directive 2006/42/EC, UKCA
  Supply of Machinery (Safety) Regulations 2008.
• Model Code – Ergo Straight
• Footrest – Manual lever-link on carriage or powered option
• Seat Height – Adjustable to 465mm / 485mm / 505mm chair to footplate
• Safety – Safety edges on footplate and carriage, over-speed governor, electro-magnetic motor brake, interlocked retractable reel seat belt, interlocked swivel chair
