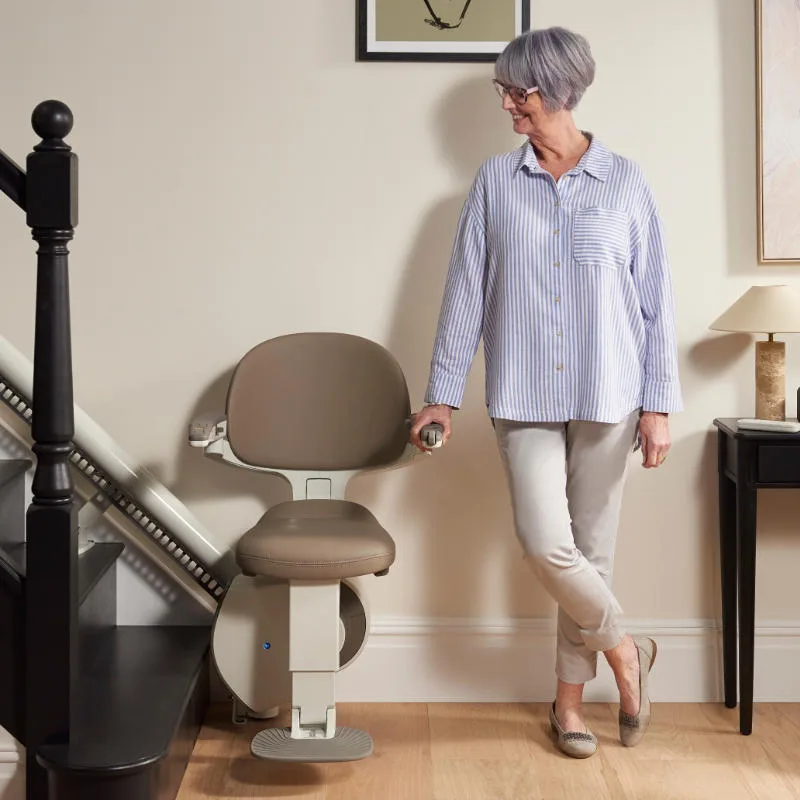

Access Flow X

Learn more about the Flow X in detail

• Call Device – Stay connected with friends and family with up to three different telephone numbers contactable directly from your stairlift.

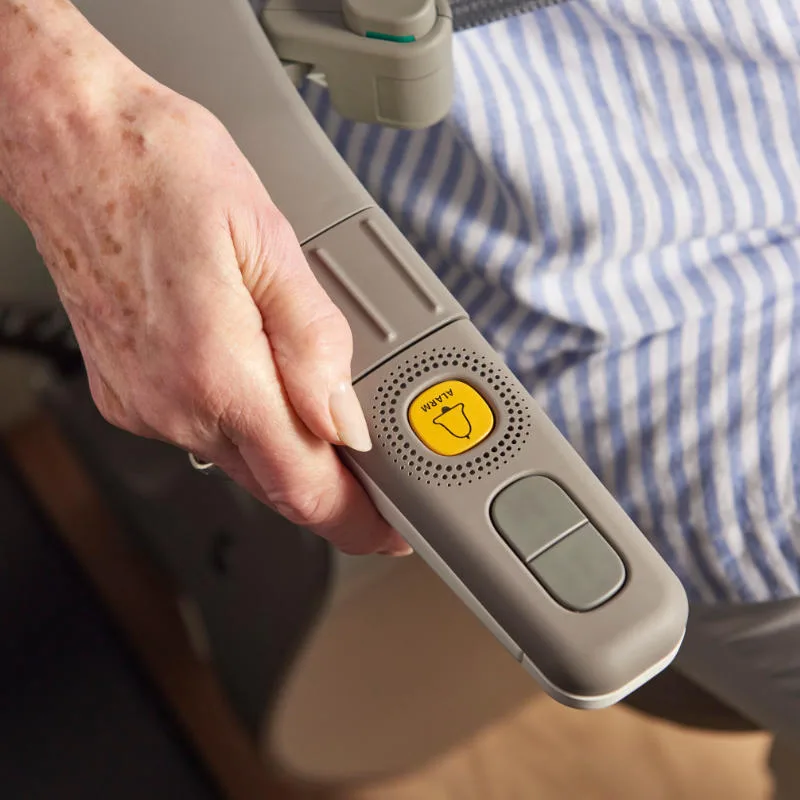

• Joystick – With a comfortable soft-touch grip, the integrated joystick is designed for you to fold away neatly in the armrest when not in use.
• Seatbelt – The Flow X’s one-handed operation seatbelt and wrap-around armrests keep you secure throughout. Having a seatbelt detection system as a standard feature ensures that you are properly secured before starting your journey.

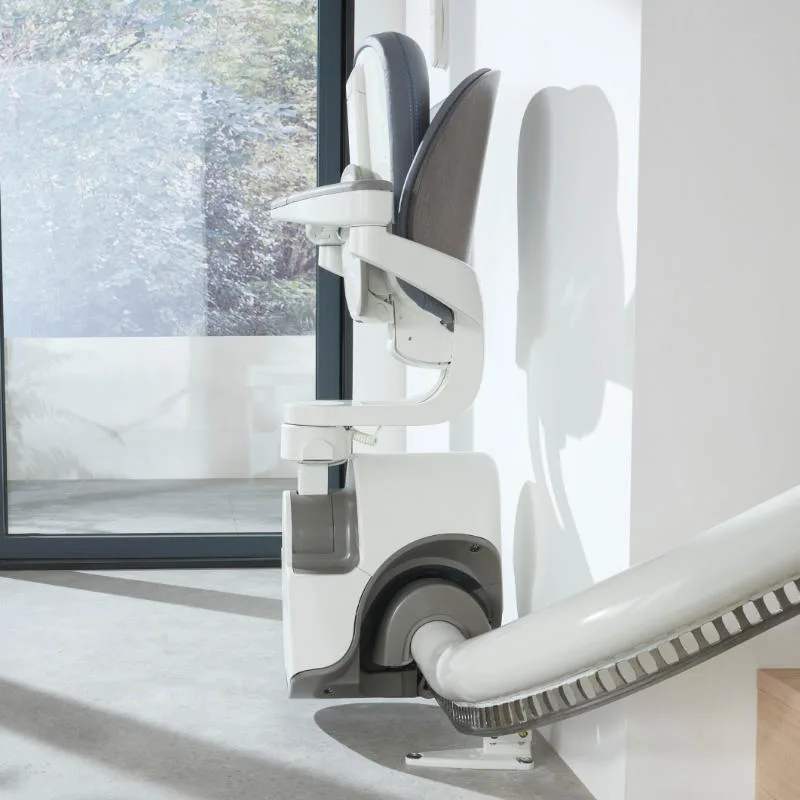

• ASL Technology –  Advanced Swivel and Levelling technology (ASL) allows it to be fitted on staircases as narrow as 610mm. This feature, unique to the Flow X, enables your stairlift to rotate while in motion, making it one of the most versatile stairlifts in the world.
• Ergonomic armrests – The Flow X’s innovative armrests provide several key benefits. They have an ergonomically-tapered form, designed to give you extra support both when standing and sitting. And thanks to the unique open-access armrest position, transferring to and from a stairlift has never been easier.
• Single rail design – Even in cases where the staircase is narrow and steep, with a single discreet rail, the Flow X can be installed closer to the step and on either side of the staircase. Your stairlift will be less obtrusive, and your staircase remains Save accessible for other family members in your home.
• Footplate – Choose between manual or opt for a powered footplate that folds away automatically.

• Speed – 0.1m/s
• Drive Type – Rack and pinion
• Motor Wattage – 350 W
• Weight Capacity –  125 kg
• Automatic Stop – Yes
• Staircase Incline – Up to 72°
• Operation – Armrest detection and foldable joystick control as standard
• Batteries – 2 x 12 V batteries, total 24 V
• Certification – Machinery Directive 2006/42/EC EN 81-40:2020
• Model Code – RP01-CU
• Footrest – Available in 2 sizes – adjustable to 5 positions
• Seat Height – Adjustable to 4 positions 515 – 585mm (floor to top of seat)
